Product Attribute |
Attribute Value |
Select Attribute |
|
|
Texas Instruments |
|
|
Product Category: |
Inverters |
|
|
RoHS: |
|
|
|
|
6 Circuit |
|
|
|
LS |
|
|
|
Bipolar |
|
|
|

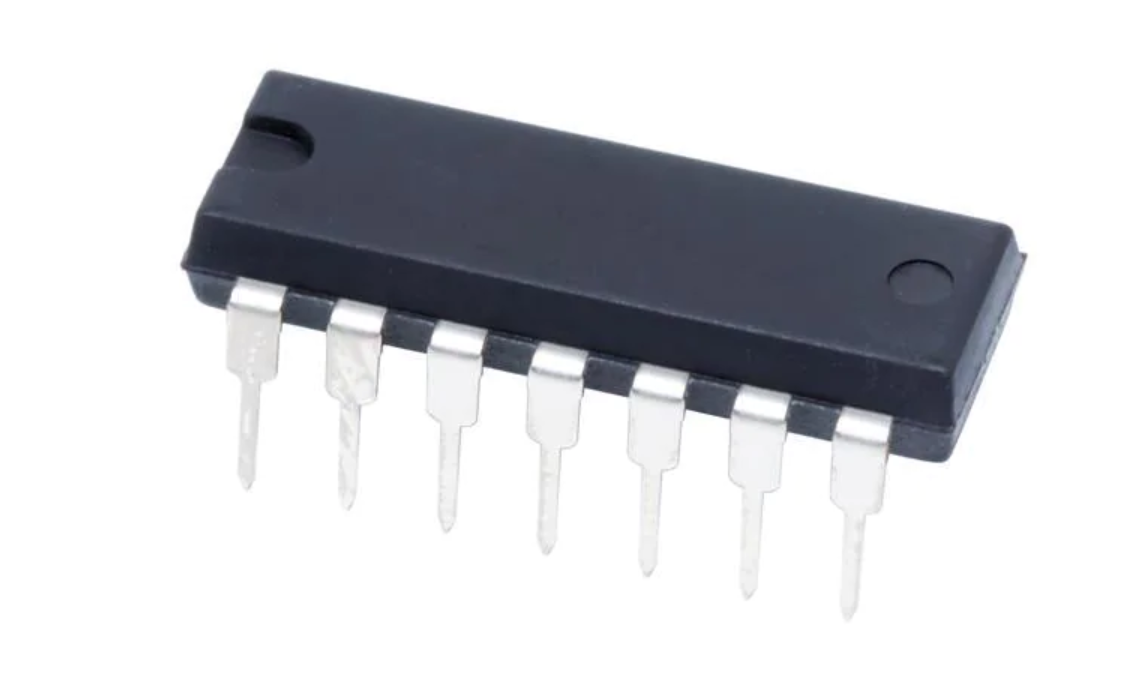

PDIP-14 |
|
|
|
5.25 V |
|
|
|
4.75 V |
|
|
|
0 C |
|
|
|
+ 70 C |
|
|
|
Through Hole |
|
|
|
Tube |
|
|
Brand: |
Texas Instruments |
|
|
Function: |
Inverter Schmitt Trigger |
|
|
High Level Output Current: |
- 400 uA |
|
|
Input Type: |
Schmitt Trigger |
|
|
Low Level Output Current: |
8 mA |
|
|
Number of Output Lines: |
6 Output |
|
|
Operating Supply Voltage: |
5 V |
|
|
Operating Temperature Range: |
0 C to + 70 C |
|
|
Output Type: |
CMOS |
|
|
Product Type: |
Inverters |
|
|
Propagation Delay Time: |
22 ns |
|
|
Series: |
SN74LS14 |
|
|
|
25 |
|
|
Subcategory: |
Logic ICs |
|
|
Unit Weight: |
0.032805 oz |
